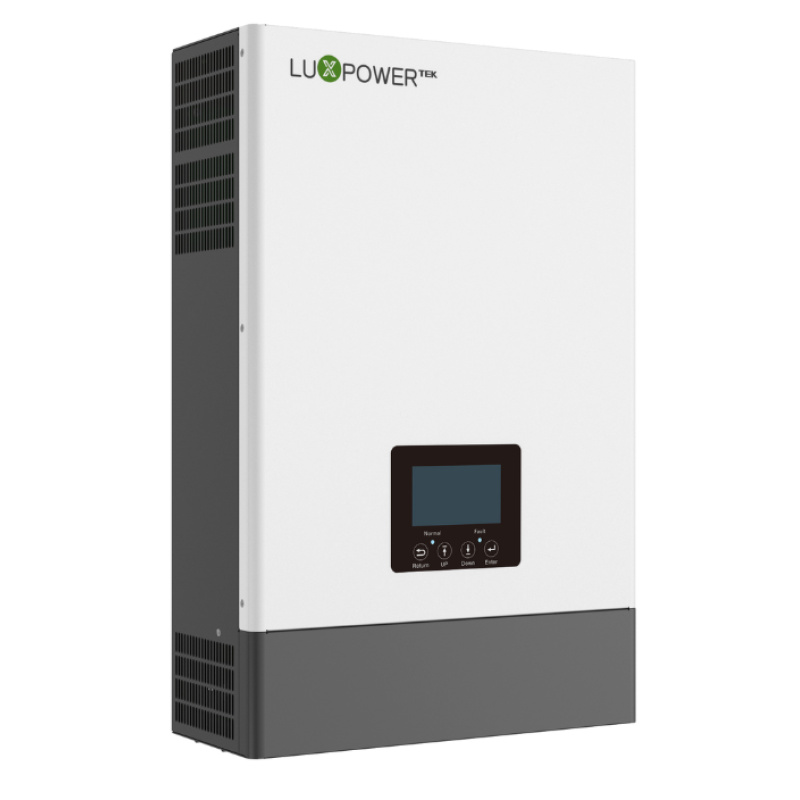

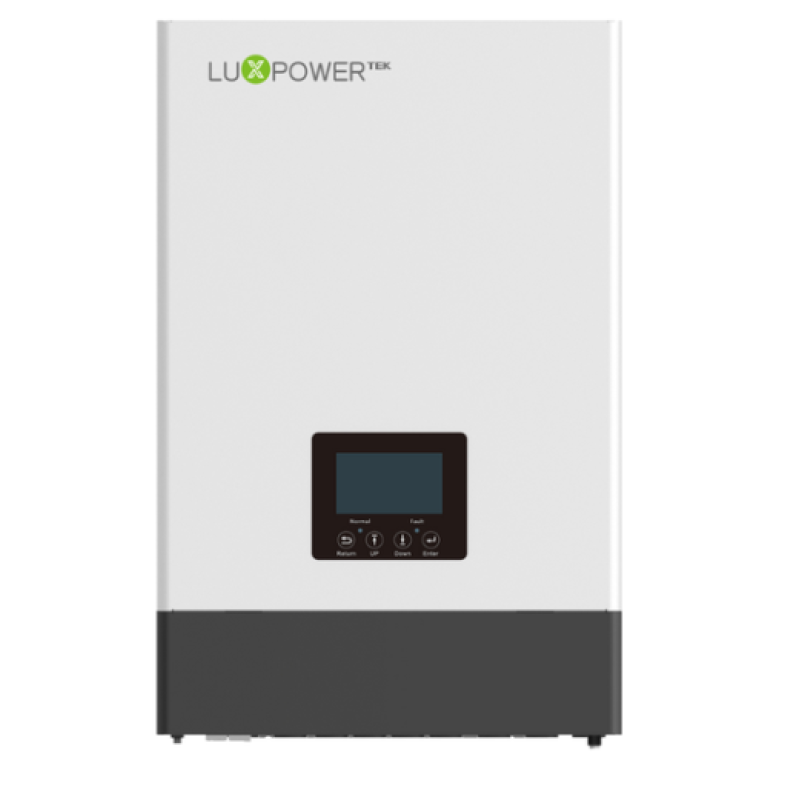

Inverters Off Grid -Luxpower5kW

The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT's and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.

Key Features of LUXPOWER SNA 5000
- Support Intelligent Hybrid function
- Support Smart Load function
- Single phase or unbalanced three phase
- Free monitoring & remote upgrade
- Wide PV input voltage range
- PV & AC power loads simultaneously
- Easy to use with battery
- Advanced Parallel, up to 50kW
- Separate generator interface available
- Host inverter automatically generated to manage entire system

AC Output Data
- Rated Power: 5000W
- Parallel Supported: Yes
- Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
- Normal Output Frequency: 50Hz / 60Hz
- Surge Power: 10000VA
- Switch Time: 10ms
- Wave Form: Pure Sine Wave

Battery Input Data
- Battery Type Supported: Lithium / Lead-Acid
- Normal Voltage: 51.2VDC / 48VDC
- Maximum Charging Voltage: 59VDC

Compatible with more than 20 Lithium battery brands:
Pylon
Dyness
LUMO
Shoto
Revov
Lithium Battery South Africa
etc.

PV Input String Data
- Maximum PV Power: 3200W / 3200W
- Number of MPP Trackers: 2
- Maximum PV Open Circuit Voltage: 480VDC
- MPPT Voltage Range: 100VDC - 385VDC
- Maximum Solar Charge Current: 100A
- Maximum Solar Input Current: 13A / 13A

Grid Data
- Normal Voltage: 230VAC
- AC Voltage Range: 110VAC-280VAC
- Maximum Charge Current: 60A
- Frequency Range: 50Hz / 60Hz (Auto Sensing)

General Info
- Ingress Protection: IP20
- Relative Humidity: 5% to 95% (Non Condensing)
- Operating Temperature Range: 0 C to +50 C
- Storage Temperature: -15 C to +60 C
- Communication: CAN / RS485/ WIFI / GPRS
- Warranty: 2 years ( 2.5-3 Years Optional)

What's in the box
1 x Luxpower SNA 5000 Inverter
1 x User Manual
1 x Installation ACC Pack
