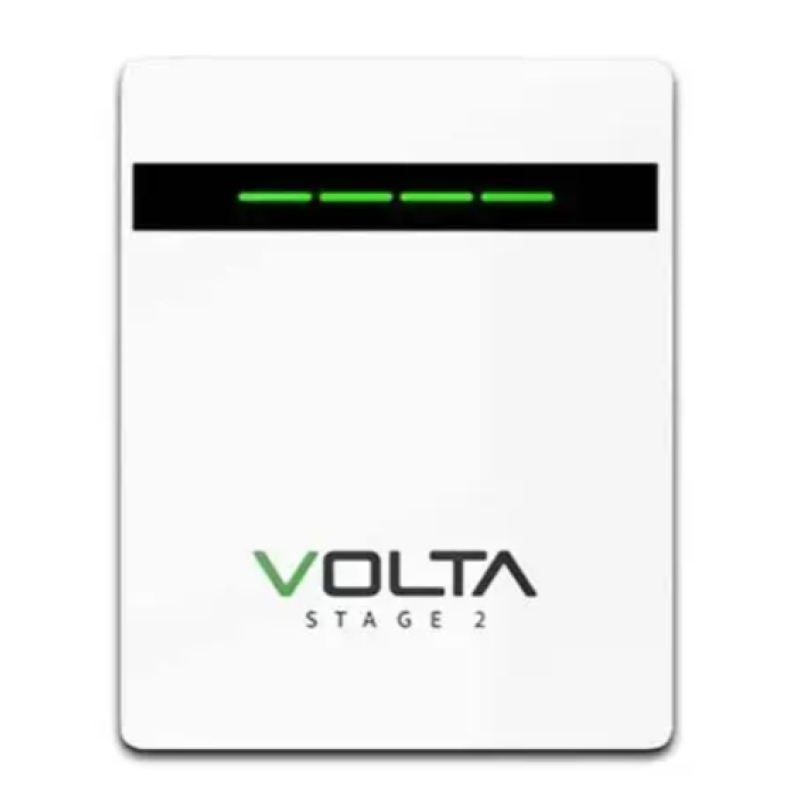

Lithium Ion Battery -Volta 7.68kWh -Stage 2

General Data
• Battery Type: Lithium-Ion
• Product Model: VOLTA STAGE 2
• Nominal Energy: 7.68KWH
• Nominal Voltage: 51.2VDC
• Nominal Capacity: 150AH
• Cell Type: LFP
• 1C/1C Continual Charge & Discharge
• Standard Charge Voltage: 56VDC
• Maximum Discharge Current: 150A
• Discharge Cut-Off Voltage: 44.8VDC
• Maximum Parallel Units: 8
• Design Life: 6000 Cycles @ 80% DOD @ 25°C
• Installation Type: Wall Mount & Floor Stand

Environment Limit
• Ingress Protection: IP20
• Charge Temperature Range: 0°C to +65°C
• Discharge Temperature Range: -20°C to +65°C
• Communication: RS485, RS232, CAN
• Safety Rating: MSDS / UN38.3
